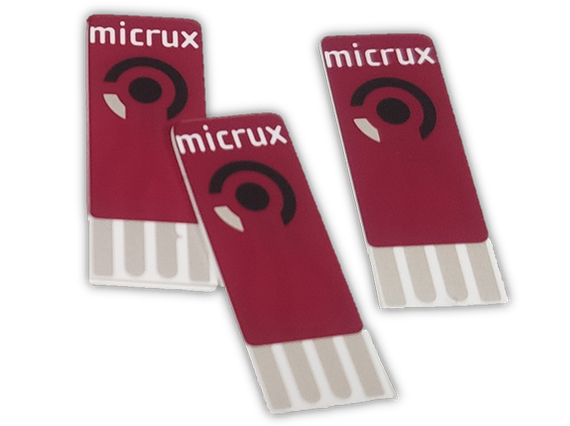

Screen printed
electode
(MicruX)
• Single 또는 Dual WE 모델
• 20 ~ 50ul의 적은 샘플 용액 사용
• 전극 재질 : Carbon, Silver, Gold
• 기판 사이즈 : 27.5 x 10.1 mm
| Description | Materials | WE diameter | WE area | Cat.No. | |||
| WE | REF | CE | Substrate | ||||

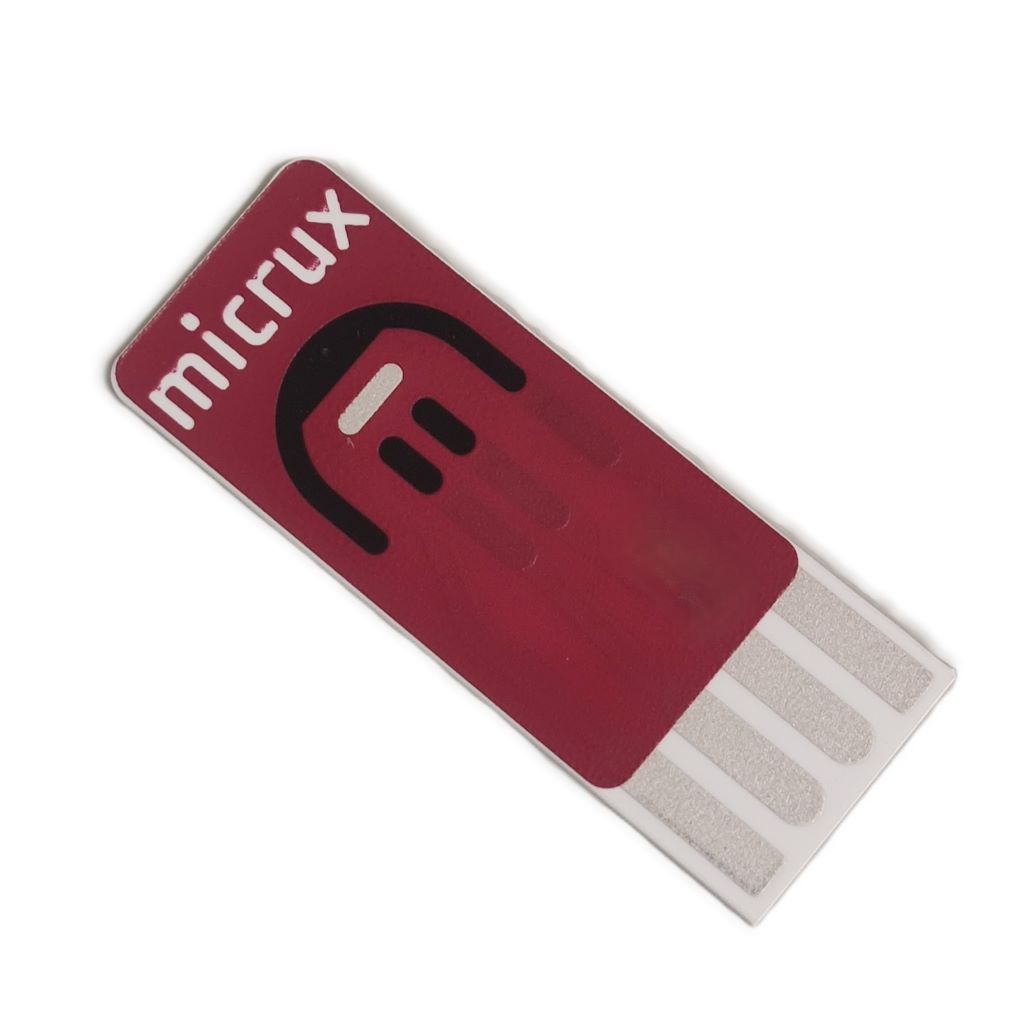

| Thick-film Carbon single electrode | HP Carbon* | Ag | HP Carbon | PET | 3mm | 7.1mm2 | ED-S1PE-C10 |
| HP Carbon | Ag | HP Carbon | Ceramic | ED-S1PE-C10C | |||
| LC Carbon** | Ag | LC Carbon | PET | ED-S1PE-C20 | |||
| LC Carbon | Ag/AgCl | LC Carbon | PET | ED-S1PE-C21 | |||
| Graphene | Ag | Graphene | PET | ED-S1PE-CG20 | |||
| Graphene | Ag/AgCl | Graphene | PET | ED-S1PE-CG21 | |||
| Au | Ag | Au | PET | ED-S1PE-Au10 | |||
| Au | Ag | Au | Ceramic | ED-S1PE-Au10C | |||
| Thick-film Carbon dual electrode | WE 1 : Carbon WE 2 : Carbon | Ag | Carbon | PET | ED-D2PE-C | ||
* HP Carbon : High performance Carbon
**LC Carbon : Low cost Carbon
Screen printed
electode
(Micrux)
• WE, CE, REF 모두 포함되어 프린트된 전극
• 적은 양의 용액에서 사용 가
• 전기화학, Material, BIO, 센서 등의 응용분야
• Connector adapter를 통한 간편 연결 가능
• 기판 사이즈 : 12.6 x 50mm

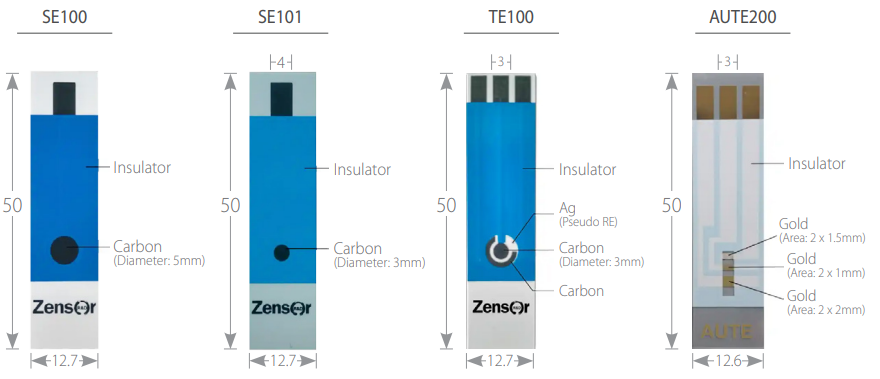

| Description | Materials | WE diameter | WE area | Cat.No. | ||
| WE | REF | CE | ||||
| Screen Printed Electrode, 40 pcs | Carbon | - | - | 5mm | 0.196cm2 | SE-100 |
| Carbon | - | - | 3mm | 0.071cm2 | SE-101 | |
| Carbon | - | - | 1.5mm | 0.018cm2 | SE-102 | |
| Ag | - | - | 5mm | 0.196cm2 | Ag100 | |
| Carbon | Pseudo Ag | Carbon | 3mm | 0.071cm2 | TE-100 | |
| Carbon | Pseudo Ag | Carbon | 2x1mm | 0.02cm2 | TE-200 | |
| Carbon | Pseudo Ag | Carbon | 3mm | 0.071cm2 | TE-300 | |
| Screen Printed Interdigitated Electrodes, 20 pcs | Au | - | - | 5mm | 0.196cm2 | AUSE100 |
| Au | Au | Au | 3mm | 0.071cm2 | AUTE100 | |
| Au | AgCl | Au | 3mm | 0.071cm2 | AUTE100AgCl | |
| Au | Au | Au | 2x1mm | 0.02cm2 | AUTE200 | |
| Au | AgCl | Au | 2x1mm | 0.02cm2 | AUTE200AgCl | |
| Description | Cat. No |
| Connector cable with alligator clips for Zensor SPE | ECC100 |
Metal electode
(MicruX)
• 10ul 이하의 극미량 샘플 사용이 가능
• 전극 재질 : Pt, Au
• 기판 재질 : Glass
• 전기화학, Material, BIO, 센서 등의 응용분야
• 기판 사이즈 : 10 x 6 x 0.75mm
Single Electrode
| Description | Electrode material | WE size | Electrochemical cell | Cat.No. |
| Thin-film Platinum single electrode (50ea) | Ti/Pt | Φ1mm(0.8mm2) | Φ2mm | ED-SE1-Pt |
| Thin-film Gold single electrode (50 ea) | Ti/Au | ED-SE1-Au | ||
| Thin-film double-metal single electrodes (WE:Au, RE/CE:Pt) (25 ea) | WE : Ti/Au RE : Ti/Pt CE : Ti/Pt | ED-SE1-AuPt |

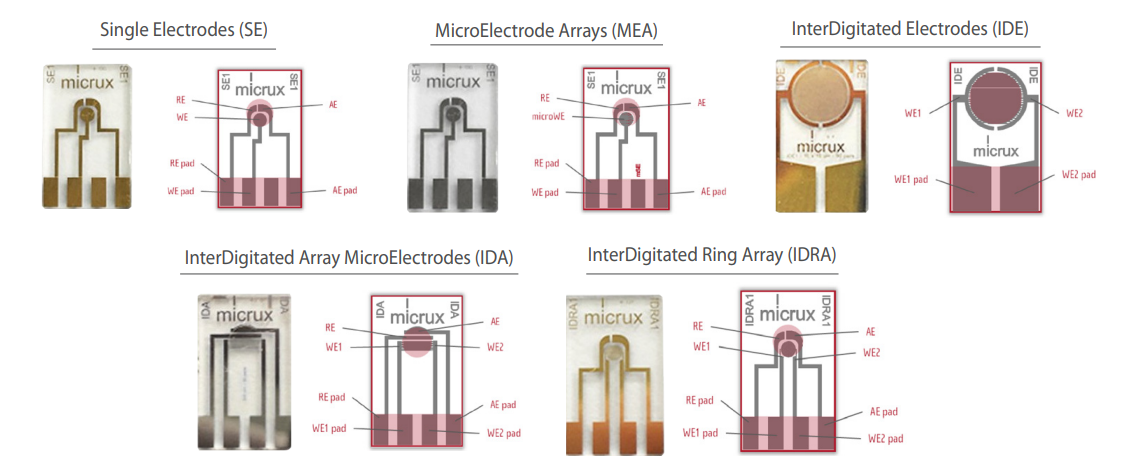

Microelectrode arrays(MEA)
| Description | Electrode material | Microholes diameter | Microhole number | Microhole pitch | Electrochemical cell | Cat.No. |
| Thin-film Platinum (Gold) microelectrode array (50 ea) | Ti/Pt(Au) | 5μm | 500 | 50μm | Φ2mm | ED-mSE-5-Pt (Au) |
| 10μm | 90 | 100μm | ED-mSE-10-Pt (Au) |
Interdigitated Electrode(IDE)
| Description | Electrode material | Microholes width | Microelectrode gap | Number of fingers | Electrochemical cell | Cat.No. |
| Thin-film Platinum (Gold) interdigitated electrodes (50 ea) | Ti/Pt(Au) | 10μm | 10μm | 90 pairs | Φ3.5mm | ED-IDE1-Pt (Au) |
| 10μm | 5μm | 120 pairs | ED-IDE2-Pt (Au) | |||
| 5μm | 5μm | 180 pairs | ED-IDE3-Pt (Au) |
Interdigitated array microelectrodes (IDRA)
| Description | Electrode material | Microholes width | Microelectrode gap | Number of fingers | Electrochemical cell | Cat.No. |
| Thin-film Platinum (Gold) interdigitated ring array microelectrodes (50 ea) | Ti/Pt(Au) | 10μm | 10μm | 12 pairs | Φ2mm | ED-IDRA1-Pt (Au) |

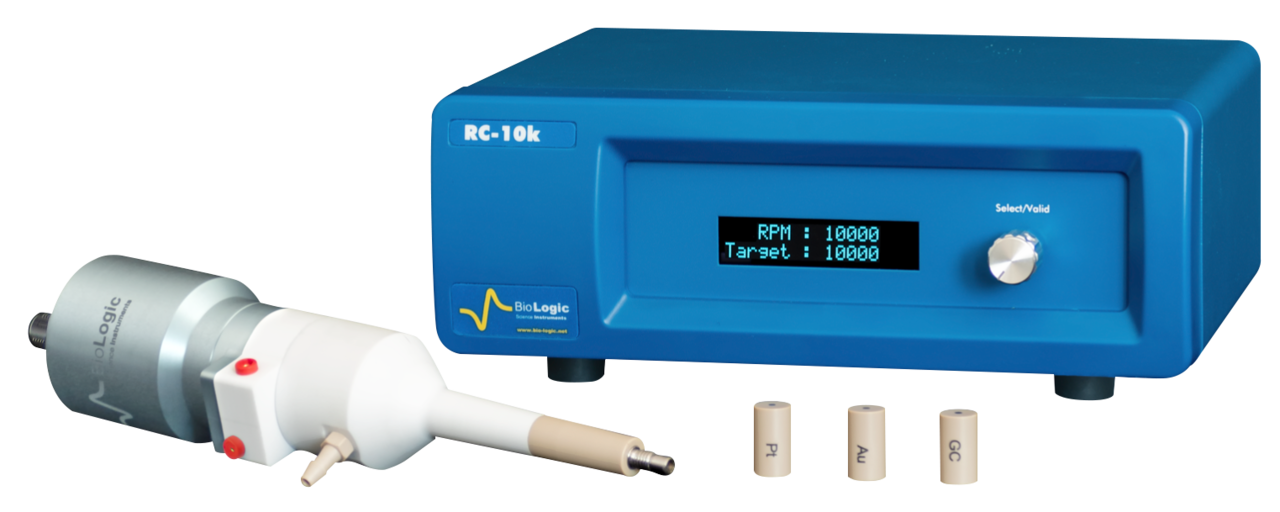

Rotating Disk & Ring-Disk Electrode
(BioLogic)
Specifications
| Rotational range / rpm 100 to 10,000 (RRDE: 9,000) |
| Accuracy / rpm ±1 over the whole rotational range |
Min. control step increment 10 /rpm |
| Measurement resolution / rpm 1 |
| Materials of RRDE/RDE PEEK, Al alloy |
Inert gas inlet for shaft Ø 2 corrosion protection / mm |
Aux I/O for external control / Yes measurement |
| Operating temperature / °C 10 to 40 |
| Weight / kg RC-10k : 1 RDE/RRDE : 0.36 (without tip) |

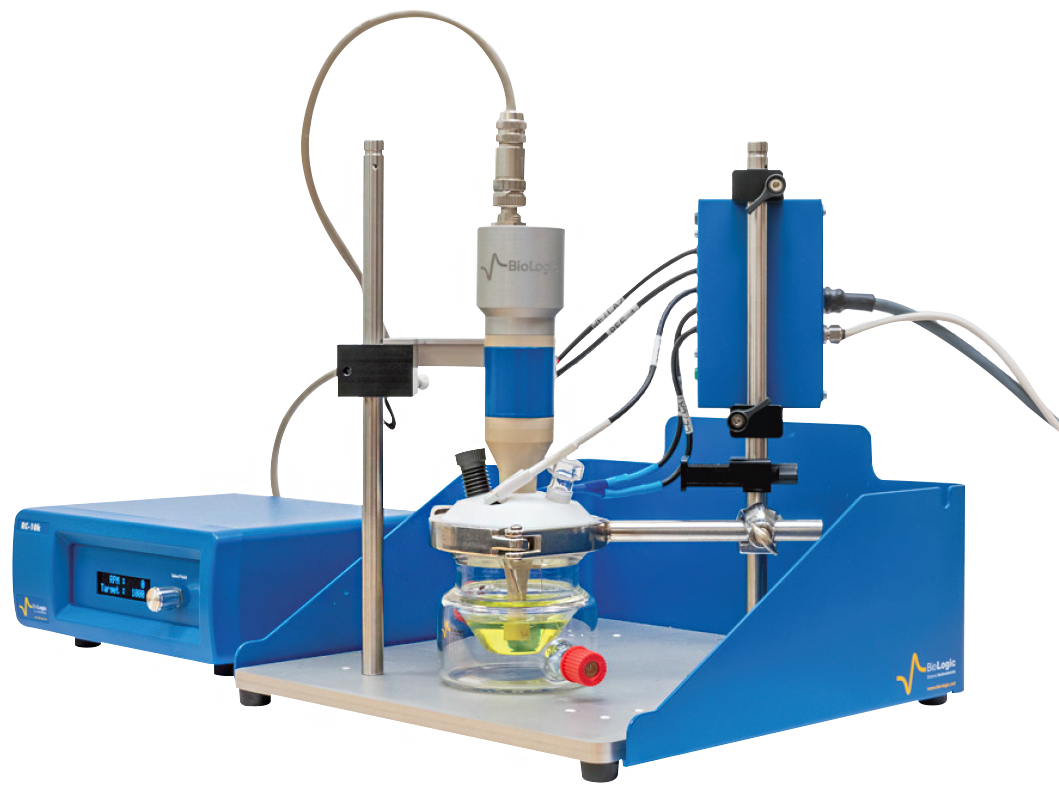

BluRev RDE / RRDE
Description | RDE | RRDE | Cat. No. |
094-RC/RDE | 094-RC/RRDE | ||
RC-10k Rotation controller | 1 | 1 | 094-RC |
Rotating ring-disk electrode (motor, shaft, electrode body with 2 pairs of Ag/C brushes) | - | 1 | 094-RRDE |
Rotating disk electrode (motor, shaft, electrode body with 1 pair of Ag/C brush) | 1 | - | 094-RDE |
DB9 to BNC connector for external control of RC-10k | 1 | 1 | 092-22/1 |
1m BNC/BNC cable | 1 | 1 | COR28100 |
Replacement Ag/C brush | 2 | 4 | 094-RDE-BRUSH |
1 transport case | 1 | 1 | - |

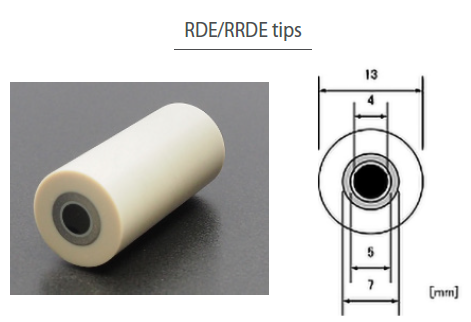

RDE/RRDE tips
Tips
| Description | Ring ID | Ring OD | Disk Φ | Cat. No. | |
| RRDE | Glassy Carbon Ring & Disk (Nmax = 0.4626) | 4mm | 6mm | 2mm | 094-GC-GC |
| Pt Ring (99.9%) - Glassy Carbon Disk (Nmax = 0.4626) | 094-PT-GC | ||||
RDE | Glassy carbon disk electrode | 3mm | 094-GC/3 | ||
| 5mm | 094-GC/5 | ||||
| Glassy carbon disk electrode, PTFE body | 3mm | 094-PTFE-GC/3 | |||
| 5mm | 094-PTFE-GC/5 | ||||
| Ag disk electrode | 3mm | 094-Ag/3 | |||
| Al disk electrode | 94-Al/3 | ||||
| Cu disk electrode | 094-Cu/3 | ||||
| Ni disk electrode | 094-Ni/3 | ||||
| Stainless steel disk electrode | 094-316L/3 | ||||
| Pt disk electrode | 2mm | 094-PT/2 | |||
| Au disk electrode | 094-AU/2 | ||||
Boron Doped Diamond 500 μm diamond layer Typical Ra = 10 nm Boron doping level between 500 and 1000 ppm | 3mm | 094-BDD/3 | |||
Cells
| Description | Cat. No. |
| Standard analytical cell kit 80ml | EL-ELECTRO-80 |
| Double-jacketed analytical cell kit 80ml | EL-ELECTRO-80DJ |
| Double-jacketed analytical cell kit 150ml | EL-ELECTRO-150DJ |
| PTFE 5 holes cap compatible with BluRev RDE (needed If you already have an EL-ELECTRO cell) | 094-A-CAP |
Options
| Description | Cat. No. |
| Bipot cable for Essential range | 092-22/12 |
| Protective housing and stand kit for the BluRev | 094-ENCL |
Disk replaceable tips
| Description | Cat. No. |
| Mounting tool kit | 092-22/12 |
| 3 mm PEEK empty tip | 094-ENCL |
| Spacer kit (1x PEEK, 3x PTFE) | 094-SPACER-KIT |
| Polishing tip | 094-DRE-POLISH |

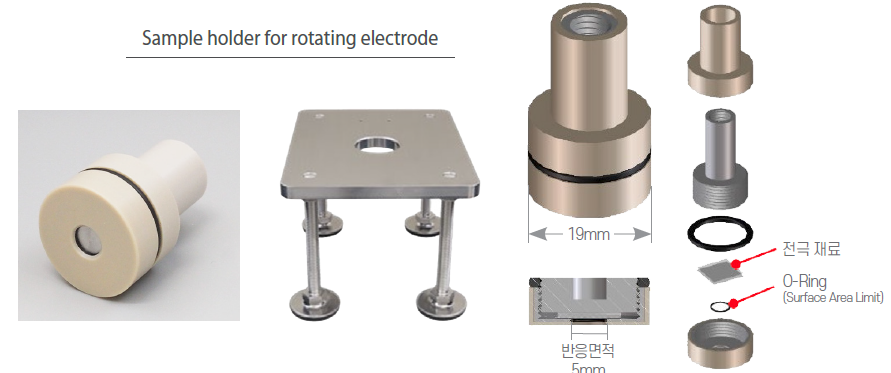

Disk replaceable tips
Rotating Disk & Ring-Disk Electrode
(EC-Frontier)
Specifications
| Rotational range / rpm 80 to 8,000 |
| Accuracy / rpm 80 to 200 (±2 rpm of reading) 200 to 8,000 (±1% of reading) |
RPM resolution 1 rpm |
| Motor Brushless motor |
Setting operation and Manual control / remote control control method by PC |
External rotation 1 rpm/mV, 2 rpm/mV, 4 rpm/mV control input (can be changed by control unit) |
External rotation 2 rpm/mV control input |
| Power supply DC 24V 2.5A AC adapter included |
Operating 10 to 40 temperature limit / °C |
| Operating humidity range 30 to 80% RH (no condensation) |
Size / mm 제어부 : 160(W) x 120(D) x 70(H) 회전부 : 140(W) x 175(D) x 230(H) |
| Weight / kg 제어부 : 약 0.9 / 회전부 : 약 3.6 |

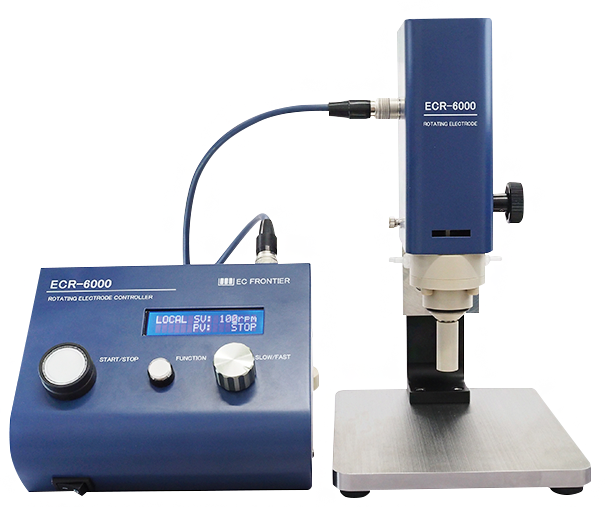

RDE / RRDE
| Description | Cat. No. |
| RDE/RRDE Electrode Rotator | ECR-6000 |

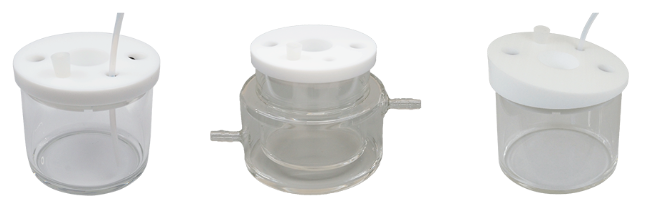

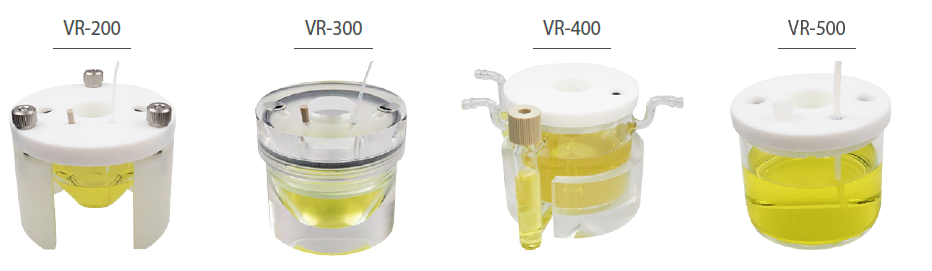

Cells for RDE/RRDE
VR-100S V100A / V100 V100/ V100 / 30200(φ3 teflon tube)
| Description | Cat. No. |
| VR100-S : Simple RDE/RRDE cell kit (100 ml) Option : V100A jacketed glass cell | 17001 |
| 17018 | |
| VR200-S : Micro volume RDE/RRDE cell kit (20 ml) | 17006 |
| VR300-S : Alkaline-resistant RDE/RRDE cell kit (20 ml) | 17012 |
| VR400-S : General purpose RDE/RRDE Cell kit (Luggin capillary type) (100 ml) | 17019 |
| VR500-S : Light irradiation RDE/RRDE Quartz Cell kit (100 ml) | 17027 |
Electrodes for RDE/RRDE
| Name | Cat. No. | Specifications |
| RDE(GC Disk) | R-GC3 | 본체 재질: PEEK, SUS304 본체 외경: 13mm Disk Pole 외경: 3mm |
| RDE(AU Disk) | R-AU3 | |
| RDE(PT Disk) | R-PT3 | |
| RDE(GC Disk ) | R-GC4 | 본체 재질 : PEEK, SUS304 본체 외경 : 13mm Disk Pole 외경 : 4mm |
| RDE(AU Disk ) | R-AU4 | |
| RDE(PT Disk ) | R-PT4 | |
| RDE (GC Disk /PTFE 가이드) | R-GC3-T | 본체 재질 : PEEK, SUS304, PTFE 본체 외경 : 13mm PTFE 가이드 : 외경 5mm, 내경 3mm Disk Pole 외경 : 3mm |
| RDE (AU Disk /PTFE 가이드) | R-AU3-T | |
| RDE (PT Disk /PTFE 가이드) | R-PT3-T | |
| RDE (GC Disk /PTFE 가이드) | R-GC4-T | 본체 재질 : PEEK, SUS304, PTFE 본체 외경 : 13mm PTFE 가이드 : 외경 6mm, 내경 4mm Disk Pole 외경 : 4mm |
| RDE (AU Disk /PTFE 가이드) | R-AU4-T | |
| RDE (PT Disk /PTFE 가이드) | R-PT4-T | |
| RDE (GC Disk /PTFE 가이드) | R-GC5-T | 본체 재질 : PEEK, SUS304, PTFE 본체 외경 : 13mm PTFE 가이드 : 외경 7mm, 내경 5mm Disk Pole 외경 : 5mm |
| RRDE(PT RING-GC Disk ) | R-GC4-PT75 | 본체 재질: PEEK, SUS304 본체 외경: 13mm RING 전극: 외경 7mm, 내경 5mm Disk Pole 외경: 4mm |
| RRDE(PT RING-AU Disk ) | R-AU4-PT75 | |
| RRDE(PT RING-PT Disk ) | R-PT4-PT75 | |
| RRDE(PT RING-GC Disk /PTFE 가이드) | R-GC4-PT75-T | 본체 재질 : PEEK, SUS304, PTFE 본체 외경 : 13mm RING 전극 : 외경 7mm, 내경 5mm PTFE 가이드 : 외경 5mm, 내경 4mm Disk Pole 외경 : 4mm |
| RRDE (PT RING-AU Disk /PTFE 가이드) | R-AU4-PT75-T | |
| RRDE(PT RING-PT Disk /PTFE 가이드) | R-PT4-PT75-T | |
| RRDE(PT RING-GC Disk /PTFE 가이드) | R-GC5-PT86-T | 본체 재질 : PEEK, SUS304, PTFE 본체 외경 : 13mm RING Pole: 외경 8mm, 내경 6mm PTFE 가이드 : 외경 6mm, 내경 5mm Disk Pole 외경 : 5mm |
