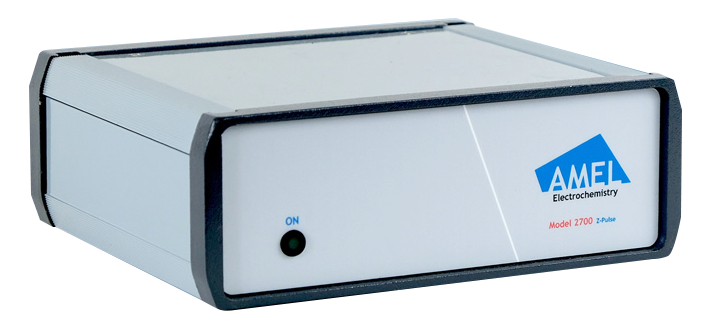

FEATURES
TECHNICAL SPECIFICATIONS
| Sine | |
| Frequency Range | 1μHz to 10MHz |
| Amplitude | 20Vpp @1kHz |
| Noise | ±0,1dB if < 100kHz ±0.15dB if < 5MHz ±0.3dB if ≤ 10MHz |
| Square | |
| Frequency Range | 1μHz to 10MHz |
| Rise & fall time | 8ns |
| Overshoot | < 1% |
| Duty Cycle | 0.01% to 99.99% |
| Asimmetry | < 0% of the period + 5ns @ 50% duty cycle |
| Jitter (RMS) | < 50ps |
| Triangle | |
| Frequency Range | 1μHz to 10MHz |
| Simmetry | 0% to 100% in 0,1% steps |
| Pulse | |
| Period | 100ns to 1000s |
| Pulse Width | 15ns to 1000s |
| Edge Time | 20ns to 1s |
| Overshoot | < 1% |
| Jitter (RMS) | < 50ps |
| Arbitrary | |
| Frequency Range | 1μHz to 10MHz |
| Sampling Rate | 50MS/s |
| DAC Resolution | 14bit |
| Output Range | ±12V at frequency < 10MHz |
| DC offset | ±12V at open circuit |
| Resolution | 12 BIT |
| Accuracy | 0.4% of range |
| Power Supply, Connections and Dimensions | |
| Computer Connection | Universal Serial Bus (USB) |
| Voltage Mains | 12 to 24V DC, 1A max |
| External Power | Model 2560 8-channel Power Supply Single Power Supply (provided if Model 2560 is not present) |
| Dimensions (L x W x H) | 200 x 215 x 80mm |
| Weight | 1.5kg |
Electrode Testing Solution
Electrode Integrated Testing Instrument
Maker
IEST (China)
Features
• Electrode Resistance Analyzer
• Online Electrode Resistance Analyzer
• Rolling Type Electrode Resistance Analyzer
• Electrode Integrated Testing Instrument
• Electrolyte Wetting Testing System
• Glove Box Type Electrode Resistance Analyzer
Applications
• Active material conductivity evaluation
• Conductivity evaluation of conductor types
• Evaluation of electrode primer technology
• Conductive agent distribution uniformity evaluation
• Uniformity evaluation of silicon-carbon hybrid material
• Analysis of electrode resistance during high temperature cycle & storage
Specifications
| Model | BER2100 | BER2200 |
| Press mode | Cylinder Pipeline gas required,range:5-35MPa) | |
| Testable parameter | Resistance, Pressure Temperature and humidity | Resistance, Pressure Temperature and humidity conductivity, resistivity |
| Function | One point test Constant pressure condition | Included BER2100 function Automatic measurement software |
| Model | BER2300 | BER2500 |
| Press mode | Servo motor (No pipeline gas required, range:5-60MPa) | |
| Testable parameter | Resistance, Pressure Temperature and humidity conductivity, resistivity | Resistance, Pressure Temperature humidity, conductivity, resistivity, thickness, compaction density |
| Function | Included BER2100 function Variable pressure | Included BER2300 function Thickness mesurement Compaction density measurement |
