FlexP
Power EIS with FlexP
A powerful booster suitable for Redox Flow Batteries (RFB) or fuel cell stacks
Maker:
BioLogic (France)

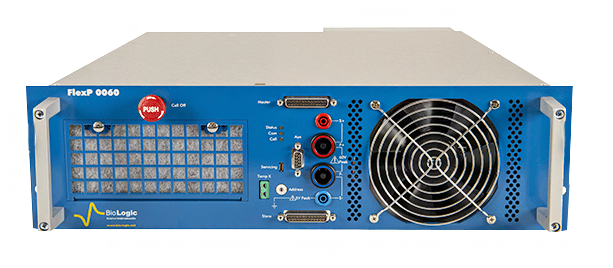

FlexP 0060
배터리 pack/module 을 위한 booster
최대 - 200 / +196 A(4개 장비 병렬 연결 시 )

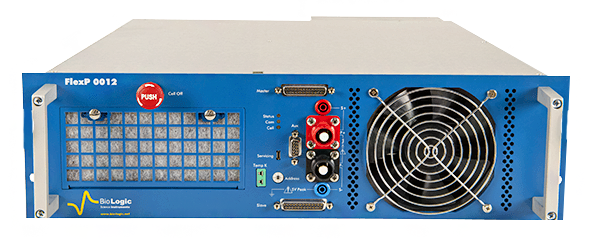

FlexP 0012
Electrolyzer/fuel cell 를 위해 특별히 설계된 booster
최대 - 800 / +780 A(4개 장비 병렬 연결 시 )
Specifications
• Boosters for Essential line equipment (SP-150e, VSP,
VSP-3e or VMP-3e )
• Parallel ability (x4)
• 10 kHz - 1 mHz EIS capable
• Up to 2.4 kW continuous with water cooling
• Cell temperature measurement included
Electrode Testing Solution
Electrode Integrated Testing Instrument
Maker
IEST (China)
Features
• Electrode Resistance Analyzer
• Online Electrode Resistance Analyzer
• Rolling Type Electrode Resistance Analyzer
• Electrode Integrated Testing Instrument
• Electrolyte Wetting Testing System
• Glove Box Type Electrode Resistance Analyzer
Applications
• Active material conductivity evaluation
• Conductivity evaluation of conductor types
• Evaluation of electrode primer technology
• Conductive agent distribution uniformity evaluation
• Uniformity evaluation of silicon-carbon hybrid material
• Analysis of electrode resistance during high temperature cycle & storage
Specifications
| Model | BER2100 | BER2200 |
| Press mode | Cylinder Pipeline gas required,range:5-35MPa) | |
| Testable parameter | Resistance, Pressure Temperature and humidity | Resistance, Pressure Temperature and humidity conductivity, resistivity |
| Function | One point test Constant pressure condition | Included BER2100 function Automatic measurement software |
| Model | BER2300 | BER2500 |
| Press mode | Servo motor (No pipeline gas required, range:5-60MPa) | |
| Testable parameter | Resistance, Pressure Temperature and humidity conductivity, resistivity | Resistance, Pressure Temperature humidity, conductivity, resistivity, thickness, compaction density |
| Function | Included BER2100 function Variable pressure | Included BER2300 function Thickness mesurement Compaction density measurement |
