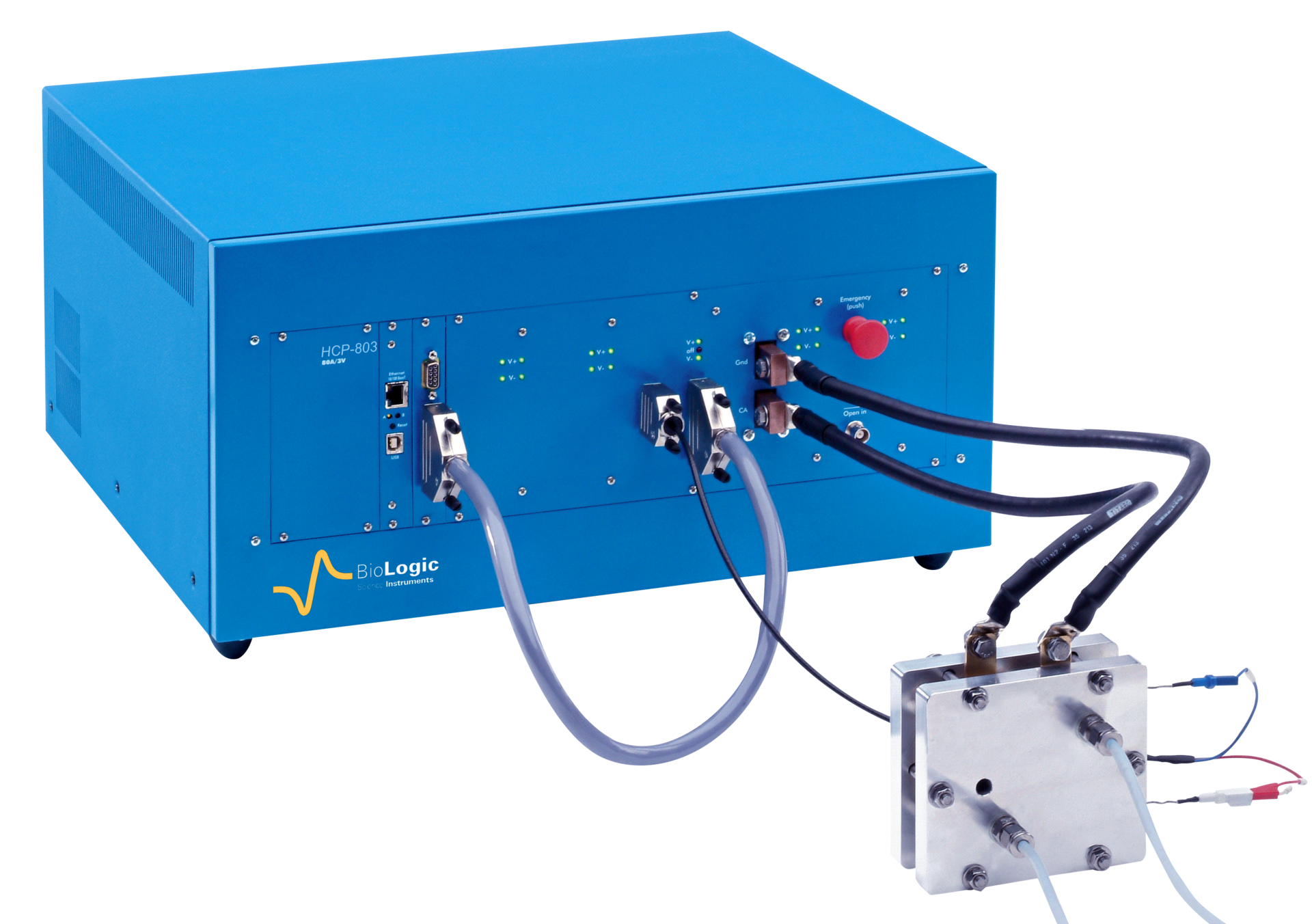

HCP-803


Single channel,

high current potentiostat

for supercapacitors & fuel cells



Maker:

BioLogic (France)

FEATURES


  • 고전류 사양으로 연료전지 및 수전해 관련 응용에 적합


  • 일반 채널보드 1개에 80A 부스터를 장착한 형태


  • Frequency를 인가하여 cell 구성 요소를 측정하고 측정 data를 기반으로

               fitting


  • Ethernet 을 사용한 computer interface로 multi user 기능


  • 채널 당 2,3,4,5 단자 측정 가능하며 Reference 대비 working 또는 counter

                측정 가능


  • 실험 중 소프트웨어 내의 대부분 측정 파라미터 수정 가능


  • EIS 피팅 패키지가 측정 소프트웨어 내에 포함


  • Calibration 기능으로 장비 이상을 스스로 점검


APPLICATIONS


• Fuel cell / Electrolyzer


• Photovoltanic systems


• Supercapacitors


• Electroplating


• Battery

SPECIFICATIONS



HCP-803
EIS capability

10 μHz to 10kHz

Analog Ramp Generatorn.a.
Floating optionCE to Grount
Permeation
(WE to Ground)		No
Multi-electrode
(CE to Grount)		Yes
Filtersnumeric
Acquisition time20 μs
Electrodes connections2, 3, 4, 5
IR compensationmanual, EIS, current interrupt
(software)


CHANNEL SPECIFICATIONS - Current




Maximum current

80A

Current ranges

± 80 A

accuracy< 0.5 % FSR* (< 800 mA)
Input impedance1 TΩ(//20 pF)


CHANNEL SPECIFICATIONS - Voltage




Compliance

6 V

Accuracy< 0.1 % FSR*
Range± 5 V at 1 A, ± 3 V at 80 A


Others




Slots available

1

Dimension

495 x 465 x 262 mm

Weight22,3 kg
Power Requirement1000 W


Electrode Testing Solution

Electrode Integrated Testing Instrument

Maker

IEST (China)

Features

• Electrode Resistance Analyzer

• Online Electrode Resistance Analyzer

• Rolling Type Electrode Resistance Analyzer

• Electrode Integrated Testing Instrument

• Electrolyte Wetting Testing System

• Glove Box Type Electrode Resistance Analyzer

Applications

• Active material conductivity evaluation

• Conductivity evaluation of conductor types

• Evaluation of electrode primer technology

• Conductive agent distribution uniformity evaluation

• Uniformity evaluation of silicon-carbon hybrid material

• Analysis of electrode resistance during high temperature cycle & storage

Specifications

ModelBER2100
BER2200
Press
mode
Cylinder
Pipeline gas required,range:5-35MPa)
Testable
parameter
Resistance,
Pressure
Temperature
and humidity
Resistance,
Pressure

Temperature

and humidity

conductivity,

resistivity

Function

One point test

Constant

pressure

condition

Included BER2100
function
Automatic
measurement
software
ModelBER2300BER2500
Press
mode
Servo motor
(No pipeline gas required,
range:5-60MPa)
Testable
parameter
Resistance,
Pressure

Temperature

and humidity

conductivity,

resistivity

Resistance,

Pressure

Temperature

humidity,

conductivity,

resistivity,

thickness,

compaction

density

Function

Included

BER2100

function

Variable

pressure

Included

BER2300

function

Thickness

mesurement

Compaction

density

measurement
