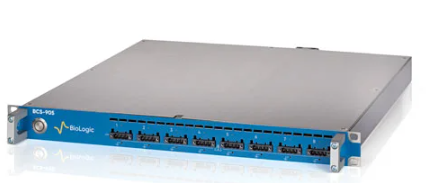

BCS-905


Battery cycling test stations

Maker:

BioLogic (France)

  FEATURES


  • BCS-910: The Micro Manager  - 코인형 셀과 기타 소형 배터리에 적합한 모델로

            채널 당 최대 ±150mA 의 전류를 제공


  • Negative voltage possibilities:  from -2.5 V to 7.5 V


  • 5개의 전류 범위를 가지며 다양한 전류 레벨 상황에서 뛰어난 정확도를 가짐


  • 18-bit  전류 및 전압 분해능, 고정밀 coulometry 분석, 빠른 대역폭(bandwidths)


  • 외부 장비 또는 온도 프로브와의 인터페이싱 및 스마트 샘플링 등 다양한 기능을 제공


  • BT-Lab® Suite 소프트웨어와 함께 편리한 기능과 함께 사용자 중심 설계를 결합


  • 8개의 독립적인 채널과 함께 모듈식 시스템 구성 가능


TECHNICAL SPECIFICATIONS



    * FSR: Full Scale Range


BCS-905
BCS-910
BCS-915
Channels
8
                            Voltage
Range
0 V to 10 V (BCS-905)-2.5V to 7.5V (BCS-905/n)
0 V to 10 V (BCS-910) -5V to 5V (BCS-910/n)
0 V to 9 V
Control resolution
150 µV
Measurement resolution
40 µV (18 bit)
Accuracy
<±0.01% of value ±0.3 mV
Slew rate
150 kV/s
150 kV/s
3 kV/s
                           Current
Max (continuous) per channel
±150 mA
±1.5 A
±15 A
Ranges
5: 100 mA down to 10 µA
5: 1 A down to 0.1 mA
5: 10 A down to 1 mA
Control resolution
Down to 0.8 nA
Down to 8 nA
Down to 80 nA
Measurement resolution
Down to 0.2 nA (18 bit)
Down to 2 nA (18 bit)
Down to 20 nA (18 bit)
Accuracy
< 0.05% of value ±0.015% of FSR*
< 0.05% of value ±0.015% of FSR* < 0.1% of value ±0.015% of FSR* (1 A range)
< 0.05% of value ±0.015% of FSR* < 0.1% of value ±0.015% of FSR* (1 A range) < 0.3% of value ±0.04% of FSR* (10 A range)
Parallel ability
No
No
Yes, Up to ±120 A with 8 channels
                                EIS
Built-in
Optional on each module (multiplexed across 8 channels)
Range
10 kHz - 10 mHz
                     Measurement
Acquisition time
1 ms
Time base
1 ms
             Additional  measurement
Thermocouple
N/A
K Type on each channel-25 °C +200 °C with accuracy of ±2 °C
                 Cell connection

4 terminal leads + Guard
4 terminal leads + Guard
4 terminal leads
                             General
Height
1U
2U
4U
Weight
6.5 kg
11 kg
24.5 kg
Power consumption
60 W
220 W
1700 W

Electrode Testing Solution

Electrode Integrated Testing Instrument

Maker

IEST (China)

Features

• Electrode Resistance Analyzer

• Online Electrode Resistance Analyzer

• Rolling Type Electrode Resistance Analyzer

• Electrode Integrated Testing Instrument

• Electrolyte Wetting Testing System

• Glove Box Type Electrode Resistance Analyzer

Applications

• Active material conductivity evaluation

• Conductivity evaluation of conductor types

• Evaluation of electrode primer technology

• Conductive agent distribution uniformity evaluation

• Uniformity evaluation of silicon-carbon hybrid material

• Analysis of electrode resistance during high temperature cycle & storage

Specifications

ModelBER2100
BER2200
Press
mode
Cylinder
Pipeline gas required,range:5-35MPa)
Testable
parameter
Resistance,
Pressure
Temperature
and humidity
Resistance,
Pressure

Temperature

and humidity

conductivity,

resistivity

Function

One point test

Constant

pressure

condition

Included BER2100
function
Automatic
measurement
software
ModelBER2300BER2500
Press
mode
Servo motor
(No pipeline gas required,
range:5-60MPa)
Testable
parameter
Resistance,
Pressure

Temperature

and humidity

conductivity,

resistivity

Resistance,

Pressure

Temperature

humidity,

conductivity,

resistivity,

thickness,

compaction

density

Function

Included

BER2100

function

Variable

pressure

Included

BER2300

function

Thickness

mesurement

Compaction

density

measurement
