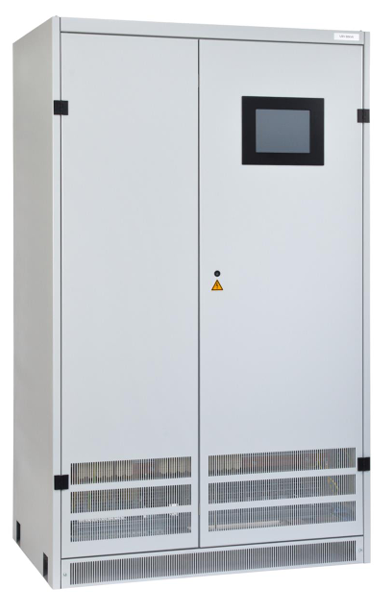

I-TS-3872

알림

Technical Data

Specifications
Mains voltage	208/380/400/480/500/660 V (3~, PE) 230/400 V (1~, PE) ±10% without N, 16, 17A, 50 Hz or 60 Hz
Output voltage	10 – 600 V ±1% permanent or adjustable (other ranges on request)
Output frequency	45-105 Hz, 195-805 Hz, 95-420 Hz (other ranges on request)
Output frequency accuracy	±0.1% fs
Rated output power	10 – 500 kVA
Voltage regulation	Static: ±1% fs Dynamic: ±4% at 100% load change (50/60 Hz), ±8% (400/800 Hz) Asymmetric load: ±2% at 100% unbalance load
Regulation time effective value	< 25 msec
Regulation time momentary value	< 4 msec
Overload characteristic	150% for 1 min. / 125% for 10 min. / 110% for 20 min.
Short-circuit characteristic	2 × I_nom. at 1-phase output 2.4 × I_nom. at 3-phase output for 5s according to EN 62040-1
Waveform	Sinusoidal
Distortion factor (with linear load)	≤ 3% (100 Hz ≤ 5%)

Applied Guidelines and Standards
Low voltage directive	2014/35/EU
EMC-Guideline	2014/30/EU
RoHS-Guideline	2011/65/EU
EMC	EN 62040-2 requirements for EMC (UPS) EN 61000-6-2 noise immunity EN 61000-6-4 transient emissions
Permissible power factor	Power derating, if power factor deviates from 0.8 lagging
Crest factor of the load current	≤ 2.3 (at 100% Load)

Standard Design
Permissible ambient temperature	+5 up to +40°C
Environmental conditions	Storage: EN 60721-3-1: IK21 / 1M11 Transport: EN 60721-3-2: K12 / 2M4 (-45 up to +70°C) Operation: EN 60721-3-3: 3K2 / 3M11 (+5 up to +40°C, ≤85% relative humidity, no condensation) Degree of pollution 2
Permissible operating altitude	1000 m above m.s.l with rated load
Protection class	IP 20 according to IEC 60529
Paint finish	RAL 7035
Cooling	"AN" natural air cooling "AF" forced air cooling "AFR" air-cooled and recooling
