EWS/ETS/CHT
Electrolyte Wetting
Testing System
Maker:
IEST (China)
FEATURES
• 전극과 분리막에서 전해질의 모세관 확산 원리를 기반으로
전해질 침투 차이를 정량적으로 평가 가능
• 고정밀 제어 및 시각적 데이터 획득 시스템을 갖추어 안정적이고 효율적인 테스트
• 다양한 전극, 전해질, 분리막 공식 및 공정에 대한 침투 차이를 평가하는 데 적합
• 샘플에서의 전해질 침투 속도를 실시간으로 특성화할 수 있음
APPLICATIONS
• Electrolyte Performance Evaluation
• Electrode Consistency Assessment
• Optimization of material Electrode Surface
Treatment Processes
SPECIFICATIONS

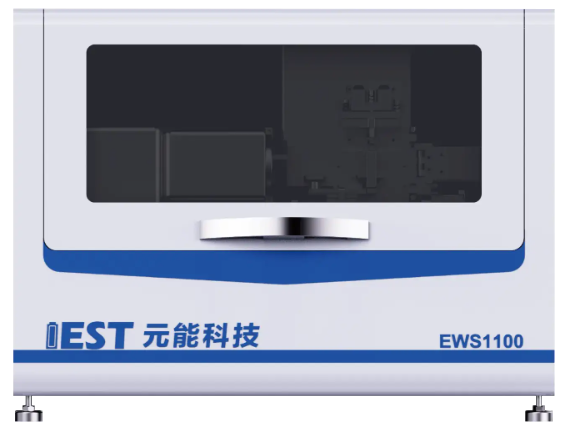

Electrode electrolyte capillary wetting system - EWS
EWS1100 | |
| Pressure control range | 0~500g |
| Pressure resolution/accuracy | 0.01g/±0.3%F.S |
| Single-pixel precision | 10μm |
| Liquid absorption capacity | 2μL |
| Electrode dimensions | 29*29mm |
SPECIFICATIONS
Electrode electrolyte weight immersion system-ETS
ETS1100 | |
| Balance capacity | 0~220g |
| Balance precision | ±0.1mg |
| Electrode size | 65*70mm |
SPECIFICATIONS
Electrode Electrolyte Heightlmmersion System-CHT
CHT1000 | |
| Testing time | 15min |
| Pixel precision | 100μm |
| Pixel precision | 240*40mm |
Electrode Testing Solution
Electrode Integrated Testing Instrument
Maker
IEST (China)
Features
• Electrode Resistance Analyzer
• Online Electrode Resistance Analyzer
• Rolling Type Electrode Resistance Analyzer
• Electrode Integrated Testing Instrument
• Electrolyte Wetting Testing System
• Glove Box Type Electrode Resistance Analyzer
Applications
• Active material conductivity evaluation
• Conductivity evaluation of conductor types
• Evaluation of electrode primer technology
• Conductive agent distribution uniformity evaluation
• Uniformity evaluation of silicon-carbon hybrid material
• Analysis of electrode resistance during high temperature cycle & storage
Specifications
| Model | BER2100 | BER2200 |
| Press mode | Cylinder Pipeline gas required,range:5-35MPa) | |
| Testable parameter | Resistance, Pressure Temperature and humidity | Resistance, Pressure Temperature and humidity conductivity, resistivity |
| Function | One point test Constant pressure condition | Included BER2100 function Automatic measurement software |
| Model | BER2300 | BER2500 |
| Press mode | Servo motor (No pipeline gas required, range:5-60MPa) | |
| Testable parameter | Resistance, Pressure Temperature and humidity conductivity, resistivity | Resistance, Pressure Temperature humidity, conductivity, resistivity, thickness, compaction density |
| Function | Included BER2100 function Variable pressure | Included BER2300 function Thickness mesurement Compaction density measurement |
