Electrochemical Cell kit

Basic electrochemical cell kit

Features


•  2-/3- electrode 실험용 기본 전기화학 cell kit

•  Clip electrode 를사용하는경우, thin film 및membrane 전극실험가능

•  Gas-tight

Product Type


Product typeCat. No.
Aqueous
B-A-BEC-50
Organic
B-O-BEC-50

Specifications


Max. electrolyte volume
50 ml
Pt wire CE
Dia.0.6 mm, length 250 mm
GC disk electrode
Dia.2 mm
Cell materials
Glass, PEEK
O-Ring materials

FKM / EPDM (Aqueous)

FFKM (Organic)

Electrode plug diameter
6 mm

Components


• 50 ml glass cell x 1

• Lid x 1

• Pt CE x 1

• Ag/AgCl RE x 1 (or non-aqueous Ag/Ag+ RE x 1)

• Glassy carbon disk electrode x 1

• Plug x 1

• Tantalum wire clips x 10


PTFE basic electrochemical cell kit

Features


•  2-/3- electrode 실험용 PTFE 전기화학 cell kit (내알칼리성)

•  Clip electrode 를사용하는경우, thin film 및membrane 전극실험가능

•  Gas-tight

Product Type


Product typeCat. No.
Aqueous
B-A-PTFE_BEC-50
Organic
B-O-PTFE_BEC-50

Specifications


Max. electrolyte volume
50 ml
Pt wire CE
Dia.0.6 mm, length 250 mm
GC disk electrode
Dia.2 mm
Cell materials
PTFE
O-Ring materials

FKM (Aqueous)

FFKM (Organic)

Electrode plug diameter
6 mm

Components


• 50 ml PTFE cell x 1

• PTFE lid x 1

• Pt CE x 1

• Ag/AgCl RE x 1 (or non-aqueous Ag/Ag+ RE x 1)

• PTFE plug x 1

• Tantalum wire clips x 10


Standard electrochemical cell kit

Features


• 2-/3- electrode 실험용 기본 전기화학 cell kit

• Sample holder 에 박막 샘플 장착하여 사용

• 총 5개의 port 가 있어, 추가 전극 장착 가능

• Gas-tight

Product Type


VolumeAqueousOrganic
100 mlB-A-STD_EC-100B-O-STD_EC-100
150 mlB-A-STD_EC-150
B-O-STD_EC-150
200 mlB-A-STD_EC-200
B-O-STD_EC-200
250 mlB-A-STD_EC-250
B-O-STD_EC-250
350 mlB-A-STD_EC-350
B-O-STD_EC-350
500 mlB-A-STD_EC-500
B-O-STD_EC-500
1,000 mlB-A-STD_EC-1L
B-O-STD_EC-1L

Specifications


Max. electrolyte volume
100, 150, 200, 250, 350, 500, 1000 ml
Pt wire CE
Dia. 0.6 mm, length 250 mm
Graphite rodDia. 6 mm, length 70 mm
Sample holder size25 x 25 mm
Max. sample thickness 4 mm
Cell materials
Glass, PEEK
O-Ring materials

EPDM (Aqueous)

FFKM (Organic)

Electrode plug diameter
6 mm

Components


• Glass cell x 1

• Lid x 1

• Adjustable handle x 2

• Working electrode mount x 1

• Graphite rod electrode x 1

• Pt CE x 1

• Ag/AgCl RE x 1 (or non-aqueous Ag/Ag+ RE x 1)

• Sample holder x 1

• Plug x 3



Jacketed standard electrochemical cell kit

Features


• 2-/3- electrode 실험용 재킷형 전기화학 cell kit

• Sample holder 에 박막 샘플 장착하여 사용

• 총 5개의 port 가 있어, 추가 전극 장착 가능

• 온도조절장치를 이용해 유체를 순환시켜 전해질 온도 조절 가능

• Gas-tight

Product Type


VolumeAqueousOrganic
100 mlB-A-STD_EC-100-J
B-O-STD_EC-100-J
150 mlB-A-STD_EC-150-J
B-O-STD_EC-150-J
200 mlB-A-STD_EC-200-J
B-O-STD_EC-200-J
250 mlB-A-STD_EC-250-J
B-O-STD_EC-250-J
350 mlB-A-STD_EC-350-J
B-O-STD_EC-350-J
500 mlB-A-STD_EC-500-J
B-O-STD_EC-500-J
1,000 mlB-A-STD_EC-1L-J
B-O-STD_EC-1L-J

Specifications


Max. electrolyte volume
100, 150, 200, 250, 350, 500, 1000 ml
Pt wire CE
Dia. 0.6 mm, length 250 mm
Graphite rodDia. 6 mm, length 70 mm
Sample holder size25 x 25 mm
Max. sample thickness 4 mm
Hose connector typeMulti barb
Recommended tube sizeID 8.0 mm
Cell materials
Glass, PEEK
O-Ring materials

EPDM (Aqueous)

FFKM (Organic)

Electrode plug diameter
6 mm

Components


• Glass cell x 1

• Lid x 1

• Working electrode amount x 1

• Adjustable handle x 2

• Graphite rod electrode x 1

• Pt CE x 1

• Ag/AgCl RE x 1 (or non-aqueous Ag/Ag+ RE x 1)

• Sample holder x 1

• Plug x 3




Standard electrochemical dual holder cell kit

Features


• 2-/3- electrode 실험용 기본 전기화학 cell kit

• WE 과 CE 전극은 각각의 샘플 홀더에 장착되며, CE 전극 샘플 홀더에는 membrane 을 장착하여 다른 전극과 분리됨.

• 2개의 여분 port 가 있어, 추가 전극 장착 가능

• Gas-tight

Product Type


VolumeAqueousOrganic
350 mlB-A-STD_EC_DH-350
B-O-STD_EC_DH-350
500 mlB-A-STD_EC_DH-500
B-O-STD_EC_DH-500
1,000 mlB-A-STD_EC_DH-1L
B-O-STD_EC_DH-1L

Specifications


Max. electrolyte volume
 350, 500, 1000 ml
Number of electrode ports4 x 6 mm dia.
2 x 12 mm dia.
Pt wire CE
Dia. 0.6 mm, length 250 mm
Counter electrode holderNominal aperture 1 cm²
Graphite rodDia. 6 mm, length 70 mm
Sample holder size25 x 25 mm
Max. sample thickness 4 mm
Cell materials
Glass, PEEK
O-Ring materials

FKM / EPDM (Aqueous)

FFKM (Organic)

Components


• Glass cell x 1

• Lid x 1

• Adjustable handle x 2

• Working electrode screw x 1

• Counter electrode screw x 1

• Sample holder x 1

• Counter electrode holder x 1

• 6 mm dia. plug x 3

• 12 mm dia. plug x 1

• Electrode adapter cable x 3

• Graphite rod electrode x 1

• Pt CE x 1

• Ag/AgCl RE x 1 (or non-aqueous Ag/Ag+ RE x 1)





Jacketed standard electrochemical dual holder cell kit

Features


• 2-/3- electrode 실험용 재킷형 전기화학 cell kit

• WE 과 CE 전극은 각각의 샘플 홀더에 장착되며, CE 전극 샘플 홀더에는 membrane 을 장착하여 다른 전극과 분리됨.

• 2개의 여분 port 가 있어, 추가 전극 장착 가능

• 온도조절장치를 이용해 유체를 순환시켜 전해질 온도 조절 가능

• Gas-tight

Product Type


VolumeAqueousOrganic
350 mlB-A-STD_EC_DH-350-J
B-O-STD_EC_DH-350-J
500 mlB-A-STD_EC_DH-500-J
B-O-STD_EC_DH-500-J
1,000 mlB-A-STD_EC_DH-1L-J
B-O-STD_EC_DH-1L-J

Specifications


Max. electrolyte volume
350, 500, 1000 ml
Number of electrode ports4 x 6 mm dia.
2 x 12 mm dia.
Pt wire CE
Dia. 0.6 mm, length 250 mm
Counter electrode holderNominal aperture 1 cm²
Graphite rodDia. 6 mm, length 70 mm
Sample holder size25 x 25 mm
Max. sample thickness 4 mm
Hose connector typeMulti barb
Recommended tube sizeID 8.0 mm
Cell materials
Glass, PEEK
O-Ring materials

FKM / EPDM (Aqueous)

FFKM (Organic)

Components


• Glass cell x 1

• Lid x 1

• Adjustable handle x 2

• Working electrode screw x 1

• Counter electrode screw x 1

• Sample holder x 1

• Counter electrode holder x 1

• 6 mm dia. plug x 3

• 12 mm dia. plug x 1

• Electrode adapter cable x 3

• Graphite rod electrode x 1

• Pt CE x 1

• Ag/AgCl RE x 1 (or non-aqueous Ag/Ag+ RE x 1)





Standard electrochemical triple holder cell kit

Features


• 2-/3- electrode 실험용 기본 전기화학 cell kit

• WE, RE, CE 전극은 각각의 샘플 홀더에 장착되며, CE 전극 샘플 홀더에는 membrane 을 장착하여 다른 전극과 분리됨.

• RE 전극 샘플 홀더에는 RE 로부터의 이온 누출을 방지하기 위한 추가 membrane 장착됨.

• 2개의 여분 port 가 있어, 추가 전극 장착 가능

• Gas-tight

Product Type


VolumeAqueousOrganic
500 mlB-A-STD_EC_TH-500
B-O-STD_EC_TH-500
1,000 mlB-A-STD_EC_TH-1L
B-O-STD_EC_TH-1L

Specifications


Max. electrolyte volume
500, 1000 ml
Number of electrode ports3 x 6 mm dia.
3 x 12 mm dia.
Pt wire CE
Dia. 0.6 mm, length 250 mm
CE / RE electrode holderNominal aperture 1 cm²
Graphite rodDia. 6 mm, length 70 mm
Sample holder size25 x 25 mm
Max. sample thickness 4 mm
Cell materials
Glass, PEEK
O-Ring materials

FKM / EPDM (Aqueous)

FFKM (Organic)

Components


• Glass cell x 1

• Lid x 1

• Adjustable handle x 2

• Working electrode screw x 1

• Counter/Reference electrode screw x 2

• Sample holder x 1

• Counter electrode holder x 1

• Reference electrode holder x 1

• 6 mm dia. plug x 2

• 12 mm dia. plug x 2

• Electrode adapter cable x 3

• Graphite rod electrode x 1

• Pt CE x 1

• Ag/AgCl RE x 1 (or non-aqueous Ag/Ag+ RE x 1)





Jacketed standard electrochemical triple holder cell kit

Features


• 2-/3- electrode 실험용 재킷형 전기화학 cell kit

• WE, RE, CE 전극은 각각의 샘플 홀더에 장착되며, CE 전극 샘플 홀더에는 membrane 을 장착하여 다른 전극과 분리됨.

• RE 전극 샘플 홀더에는 RE 로부터의 이온 누출을 방지하기 위한 추가 membrane 장착됨.

• 2개의 여분 port 가 있어, 추가 전극 장착 가능

• Gas-tight

Product Type


VolumeAqueousOrganic
500 mlB-A-STD_EC_TH-500-J
B-O-STD_EC_TH-500-J
1,000 mlB-A-STD_EC_TH-1L-J
B-O-STD_EC_TH-1L-J

Specifications


Max. electrolyte volume
500, 1000 ml
Number of electrode ports3 x 6 mm dia.
3 x 12 mm dia.
Pt wire CE
Dia. 0.6 mm, length 250 mm
CE / RE electrode holderNominal aperture 1 cm²
Graphite rodDia. 6 mm, length 70 mm
Hose connector typeMulti barb
Recommended tube sizeID 8.0 mm
Sample holder size25 x 25 mm
Max. sample thickness 4 mm
Cell materials
Glass, PEEK
O-Ring materials

FKM / EPDM (Aqueous)

FFKM (Organic)

Components


• Glass cell x 1

• Lid x 1

• Adjustable handle x 2

• Working electrode screw x 1

• Counter/Reference electrode screw x 2

• Sample holder x 1

• Counter electrode holder x 1

• Reference electrode holder x 1

• 6 mm dia. plug x 2

• 12 mm dia. plug x 2

• Electrode adapter cable x 3

• Graphite rod electrode x 1

• Pt CE x 1

• Ag/AgCl RE x 1 (or non-aqueous Ag/Ag+ RE x 1)





Two-compartment electrochemical cell kit

Features


• 2-/3- electrode 실험용 전기화학 cell kit

• Clip electrode 사용하여 thin-film 및 membrane 전극 실험 가능

• CE 는 ceramic frit 으로 분리된 glass cell 에 장착

• CE 용 glass cell 제거 시, 기본 전기화학 셀로 사용 가능

• Gas-tight

Product Type


Product typeCat. No.
Aqueous
B-A-2CEC-50
Organic
B-O-2CEC-50

Specifications


Max. electrolyte volume
50 ml
Pt wire CE
Dia. 0.6 mm, length 250 mm
GC disc electrodeDia. 2 mm
Cell materials
Glass, PEEK
O-Ring materials

FKM / EPDM (Aqueous)

FFKM (Organic)

Electrode plug diameter6 mm

Components


• Glass cell x 1

• Lid x 1

• CE glass compartment x 1

• GC disc electrode x 1

• Pt CE x 1

• Ag/AgCl RE x 1 (or non-aqueous Ag/Ag+ RE x 1)

• Plug x 1

• Tantalum wire clips x 10





Two-compartment electrochemical cell kit with additional inlet/outlet

Features


• 2-/3- electrode 실험용 이중칸 전기화학 H-cell kit

• CE 는 ceramic frit 으로 분리된 glass cell 에 장착

• CE compartment 에도 별도의 gas inlet / outlet 장착

• CE 용 glass cell 제거 시, 기본 전기화학 셀로 사용 가능

• Gas-tight

Product Type


Product typeCat. No.
Aqueous
B-A-2CEC+-50
Organic
B-O-2CEC+-50

Specifications


Max. electrolyte volume
50 ml
Pt wire CE
Dia. 0.6 mm, length 250 mm
GC disc electrodeDia. 2 mm
Number of electrode slots3
Cell materials
Glass, PEEK
O-Ring materials

FKM / EPDM (Aqueous)

FFKM (Organic)

Electrode plug diameter6 mm

Components


• Glass cell x 1

• Lid x 1

• CE glass compartment x 1

• GC disc electrode x 1

• Pt CE x 1

• Ag/AgCl RE x 1 (or non-aqueous Ag/Ag+ RE x 1)

• Plug x 1

• Tantalum wire clips x 10





Two-compartment multiport electrochemical cell kit

Features


• 2-/3- electrode 실험용 이중칸 전기화학 H-cell kit

• CE 는 ceramic frit 으로 분리된 glass cell 에 장착

• CE 용 glass cell 제거 시, 기본 전기화학 셀로 사용 가능

• 2개의 여분 port 가 있어, 추가 전극 장착 가능

• Gas-tight

Product Type


Product typeCat. No.
Aqueous
B-A-2CMEC-50
Organic
B-O-2CMEC-50

Specifications


Max. electrolyte volume
50 ml
Pt wire CE
Dia. 0.6 mm, length 250 mm
GC disc electrodeDia. 2 mm
Number of electrode slots5
Cell materials
Glass, PEEK
O-Ring materials

FKM / EPDM (Aqueous)

FFKM (Organic)

Electrode plug diameter6 mm

Components


• Glass cell x 1

• Lid x 1

• CE glass compartment x 1

• GC disc electrode x 1

• Pt CE x 1

• Ag/AgCl RE x 1 (or non-aqueous Ag/Ag+ RE x 1)

• Plug x 3

• Tantalum wire clips x 10





Autoclavable two-compartment electrochemical cell kit

Features


• 열수조건용 2-/3- electrode 실험용 이중칸 전기화학 cell kit

• CE 는 ceramic frit 으로 분리된 PEEK cell 에 장착 후, PEEK screw 로 CE compartment 고정

• CE 용 PEEK cell 제거 시, 기본 전기화학 셀로 사용 가능

• Autoclave 에 적합한 전극만 사용 가능

• Gas-tight

Product Type


Product typeCat. No.
Autoclavable cell kitB-AC_2CEC-50

Specifications


Max. electrolyte volume
50 ml
RE effective length80 mm
Ag/AgCl RE diameterBody : 6 mm
Tip : 4 mm
Recommended filling solution3M KCl
Au CEDia. 0.6 mm, length 250 mm
GC disc electrodeDia. 2 mm, length 70 mm
Number of electrode slots3
Cell materials
PTFE, PEEK
Electrode plug diameter6 mm

Components


• PEEK chamber x 1

• Lid x 1

• CE PEEK compartment x 1

• Set of screws x 1

• Autoclavable Ag/AgCl RE x 1

• Autoclavable Au CE x 1

• Autoclavable GC disc electrode x 1

• Plug x 1

• Tantalum wire clips x 10






Basic electrochemical H-cell kit

Features


• 2-/3- electrode 실험용 이중칸 전기화학 H-cell kit

• CE 는이온교환막  (직경 19 - 25 mm) 에 의해 분리된 별도의 glass cell 에 장착하며, CE compartment 에도 별도의 gas inlet / outlet 있음.

• WE 과 RE 의 팁은 membrane 중앙에 위치해야 함.

• Gas-tight

Product Type


Product typeCat. No.
Aqueous
B-A-BE_HC-50
Organic
B-O-BE_HC-50

Specifications


Max. electrolyte volume
40 ml
Min. electrolyte volume30 ml
Max. membrane diameter25 mm
Min. membrane diameter19 mm
Max. membrane thickness0.5 mm
Pt wire CEDia. 0.6 mm, length 250 mm
GC disc electrodeDia. 2 mm
Number of electrode slots3
Cell materials
Glass, PEEK
O-Ring materials

FKM / EPDM (Aqueous)

FFKM (Organic)

Electrode plug diameter6 mm

Components


•Glass cell x 1

• Lid x 1

• CE PEEK compartment x 1

• Membrane holder x 1

• GC disc electrode x 1

• Pt CE x 1

• Ag/AgCl RE x 1 (or non-aqueous Ag/Ag+ RE x 1)

• Plug x 1

• Tantalum wire clips x 10






Electrochemical H-cell kit

Features


• 2-/3- electrode 실험용 전기화학 H-cell kit

• 각각 gas inlet / outlet 을 갖춘 두 개의 chamber 로 구성되어 있으며, 이온교환막에 의해 분리됨.

• Gas-tight

Product Type


Mount typeAqueousOrganic
Magnetic B-A-MM_EC_HC-2x15
B-O-MM_EC_HC-2x15
ScrewB-A-EC_HC-2x15
B-O-EC_HC-2x15

Specifications


Nominal exposure area of an ion-exchange membrane1 cm²
Max. ion-exchange membrane thickness3 mm
Min. electrolyte volume2 x 10 ml
Max. electrolyte volume2 x 15 ml
GC disc WEDia. 2 mm
Pt wire CEDia. 0.6 mm, length 250 mm
Cell materials
PEEK
O-Ring materials

FKM / EPDM (Aqueous)

FFKM (Organic)

Electrode plug diameter6 mm

Components


• PEEK chamber x 2

• Lid x 2

• GC disc electrode x 1

• Pt CE x 1

• Ag/AgCl RE x 1 (or non-aqueous Ag/Ag+ RE x 1)

• Plug x 2

• Tantalum wire clips x 10







Bottom mount electrochemical cell kit

Features


• 평평한 기판 위의 박막형 전극 측정을 위한 전기화학 cell kit

• 하단의 magnetic 또는 screw mount 를 통해 sample 장착

• Gas-tight

Product Type


Mount typeAqueousOrganic
Magnetic mountB-A-BMM_EC-15
B-O-BMM_EC-15
Screw mountB-A-BM_EC-15
B-O-BM_EC-15

Specifications


Nominal exposure area 1 cm²
Min. electrolyte volume2.5 ml
Max. electrolyte volume15 ml
Min. substrate size17 x 25 mm
Recommended substrate size25 x 25 mm
Max. substrate thickness3 mm
Cell materials
Glass, PEEK
O-Ring materials

FKM / EPDM (Aqueous)

FFKM (Organic)

Electrode plug diameter6 mm

Components


• Glass cell x 1

• Lid x 1

• Sample mount x 1

• Bottom casing x 1

• Pt CE x 1

• Ag/AgCl RE x 1 (or non-aqueous Ag/Ag+ RE x 1)

• Plug x 1








Bottom mount corrosion cell kit

Features


• EIS 및 일반적인 전기화학 측정을 위한 부식용 cell kit

• Sample type : 평평한 기판 위의 금속 thin-film, 금속 plate, mesh, wire,ribbon

• 하단의 magnetic mount 를 통해 sample 장착

• Gas-tight

Product Type


Product typeCat. No.
AqueousB-A-BMM_CC-15-1
OrganicB-O-BMM_CC-15-1

Specifications


Nominal exposure area 1 cm²
Min. electrolyte volume2.5 ml
Max. electrolyte volume15 ml
Plate,
Thin-film
Min. sample size17 x 25 mm
Recommended sample size25 x 25 mm
Max. sample thickness3 mm
Wire, ribbonMax. sample thickness0.25 mm
Min. sample length25 mm
MeshMesh size80 - 500 wires/inch
Pt wire CEDia. 0.6 mm, length 250 mm
Graphite rod electrodeDia. 6 mm, length 70 mm
Cell materialsGlass, PEEK
O-Ring materials

FKM / EPDM (Aqueous)

FFKM (Organic)

Electrode plug diameter6 mm

Components


• Glass cell x 1

• Lid x 1

• Bottom casing x 1

• Gas/liquid chamber x 1

• Window holder x 1

• Set of screws x 1

• Graphite rod electrode x 1

• Pt CE x 1

• Ag/AgCl RE x 1 (or non-aqueous Ag/Ag+ RE x 1)

• Plug x 1








Van der Pauw bottom mount electrochemical cell kit

Features


• 전해질 용액에서 이온 이동에 의한 thin-film 비저항의 변화를 측정하기 위한 cell kit

• 균일한 샘플의 전하농도 분석 및 비저항 측정 방법 : Van der Pauw

     < 샘플 조건 >

  • 접촉면이 샘플의 가장자리에 위치하며
  • 접촉면이 충분히 작고
  • 샘플의 두께가 균일해야 하며
  • 샘플 표면에 빈 공간이 없어야 함.

• 하단의 magnetic mount 를 통해 sample 장착

• Gas-tight

Product Type


Product typeCat. No.
AqueousB-A-VDP_BMM_EC-15-8x8
OrganicB-O-VDP_BMM_EC-15-8x8

Specifications


Nominal exposure area 0.2 cm²
Min. electrolyte volume2.5 ml
Max. electrolyte volume15 ml
Substrate size8 x 8 mm
Max. substrate thickness3 mm
Pt wire CEDia. 0.6 mm, length 250 mm
Cell materials
Glass, PEEK
O-Ring materials

FKM / EPDM (Aqueous)

FFKM (Organic)

Electrode plug diameter6 mm

Components


• Glass cell x 1

• Lid x 1

• Bottom casing x 1

• Sample mount x 1

• Plug x 1

• Tantalum contact x 4

• Pt CE x 1

• Ag/AgCl RE x 1 (or non-aqueous Ag/Ag+ RE x 1)








Two-compartment bottom mount electrochemical cell kit

Features


• 평평한 기판 위의 박막형 전극 측정을 위한  2-/3- electrode 이중칸 전기화학 cell kit

• 하단의 screw mount 를 사용해 sample 장착

• CE 는 ceramic frit 으로 분리된 glass cell 에 장착

• CE compartment 에도 별도의 gas inlet / outlet 장착

• CE 용 glass cell 제거 시, 기본 전기화학 셀로 사용 가능

• Gas-tight

Product Type


Product typeCat.No.
AqueousB-A-2C_BM_EC-50
OrganicB-O-2C_BM_EC-50

Specifications


Nominal exposure area 1 cm²
Min. electrolyte volume25 ml
Max. electrolyte volume45 ml
Min. substrate size17 x 25 mm
Recommended substrate size25 x 25 mm
Max. substrate thickness4 mm
Pt wire CEDia. 0.6 mm, length 250 mm
Cell materials
Glass, PEEK
O-Ring materials

FKM / EPDM (Aqueous)

FFKM (Organic)

Electrode plug diameter6 mm

Components


• Glass cell x 1

• Lid x 1

• CE glass compartment x 1

• Bottom casing x 1

• Sample mount x 1

• Pt CE x 1

• Ag/AgCl RE x 1 (or non-aqueous Ag/Ag+ RE x 1)

• Plug x 2








Two-compartment bottom mount front contact electrochemical cell kit

Features


• 평평한 기판 위의 박막형 전극 측정을 위한  2-/3- electrode 이중칸 전기화학 cell kit

• 피스톤 위에 샘플 부착한 후,screw mount 를 통해 하부에 장착함

• CE 는 2 mm 두께의 Al₂O₃ ceramic frit glass cell 에 장착

• CE compartment 에도 별도의 gas inlet / outlet 장착

• Gas-tight

Product Type


Sample size (mm)Aqueous
Organic
5 x 5B-A-2C_BM_FC_EC-50-5x5B-O-2C_BM_FC_EC-50-5x5
7 x 7B-A-2C_BM_FC_EC-50-7x7B-O-2C_BM_FC_EC-50-7x7
10 x 10B-A-2C_BM_FC_EC-50-10x10B-O-2C_BM_FC_EC-50-10x10
15 x 15B-A-2C_BM_FC_EC-50-15x15B-O-2C_BM_FC_EC-50-15x15

Specifications


Min. electrolyte volume25 ml
Max. electrolyte volume45 ml
Nominal exposure area5 x 5 mm0.07 cm²
7 x 7 mm0.2 cm²
10 x 10 mm0.5 cm²
15 x 15 mm1.33 cm²
Max. sample thickness3 mm
Pt wire CEDia. 0.6 mm, length 250 mm
Cell materialsGlass, PEEK
O-Ring materials

FKM / EPDM (Aqueous)

FFKM (Organic)

Electrode plug diameter6 mm

Components


• Glass cell x 1

• Lid x 1

• CE glass compartment x 1

• Bottom casing x 1

• Sample screw mount x 1

• Piston x 1

• Clamp screw x 1

• Plug x 2

• Tantalum contact x 1

• Pt CE x 1

• Ag/AgCl RE x 1 (or non-aqueous Ag/Ag+ RE x 1)

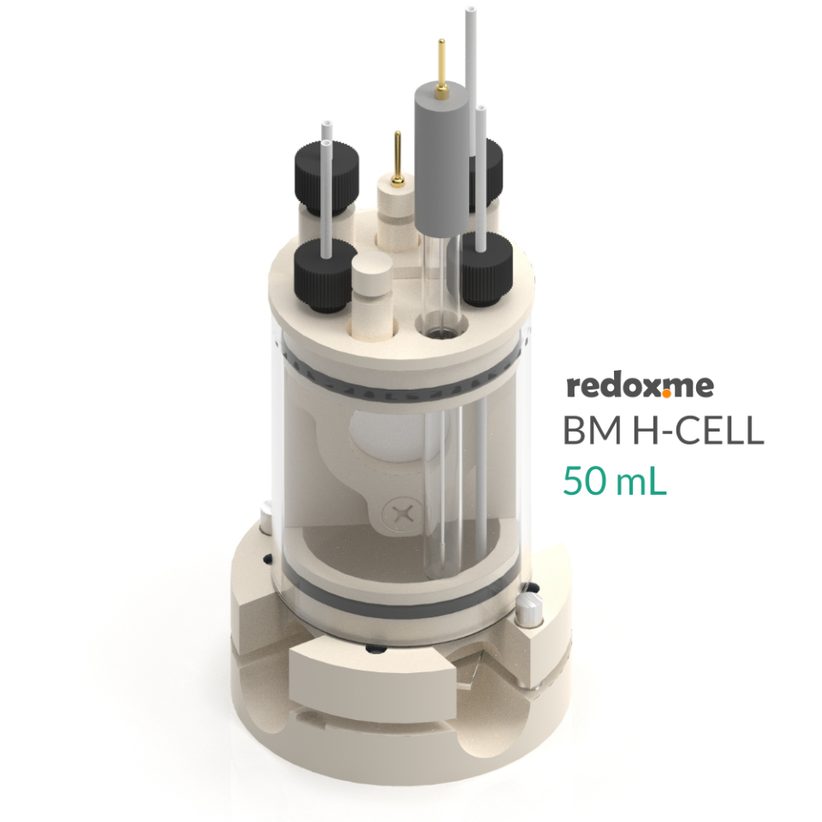

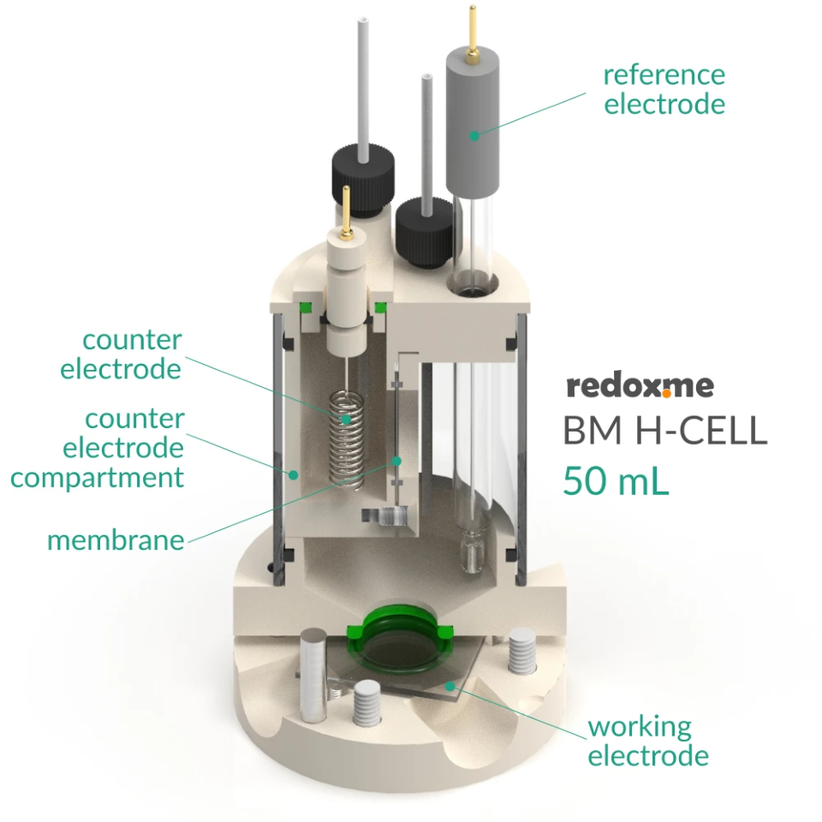

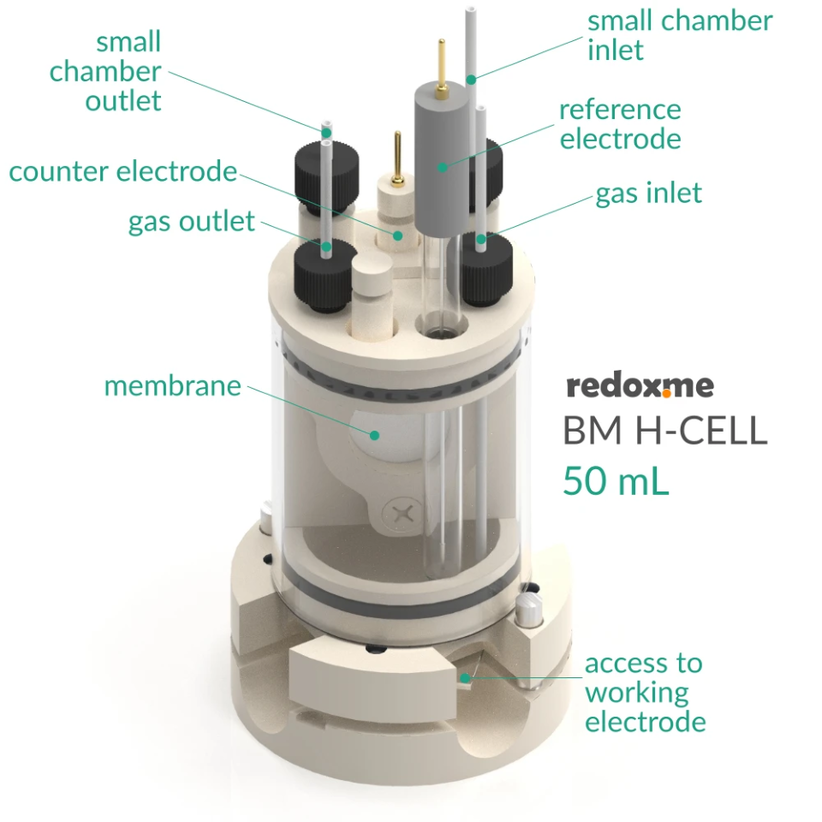

Bottom mount electrochemical H-cell kit

Features


• 평평한 기판 위의 박막형 전극 측정을 위한 이중칸 전기화학 H-cell kit

• CE 는이온교환막  (직경 19 - 25 mm) 에 의해 분리된 별도의 glass cell 에 장착하며, CE compartment 에도 별도의 gas inlet / outlet 있음.

• 하단의 screw mount 를 통해 sample 장착

• Gas-tight

Product Type


Product typeCat. No.
AqueousB-A-BM_HC-50
OrganicB-O-BM_HC-50
